| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | fanryn |
| إصدار الشهادات: | ASTM E84， CE |
| رقم الموديل: | بطانية صوف زجاجي غير مكسوة |
| الحد الأدنى لكمية: | 1*40HQ |
| الأسعار: | 0.1-6$ per sqaure meter |
| تفاصيل التغليف: | كيس بلاستيكي فاكوم+كيس منسوج |
| وقت التسليم: | 7-10 أيام |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 10000 متر مربع |
| مقاومة الحريق: | الفئة أ | ||
|---|---|---|---|
| إبراز: | fire-resistant glass wool blanket,moisture-resistant thermal insulation blanket,eco-friendly glass wool insulation |
||

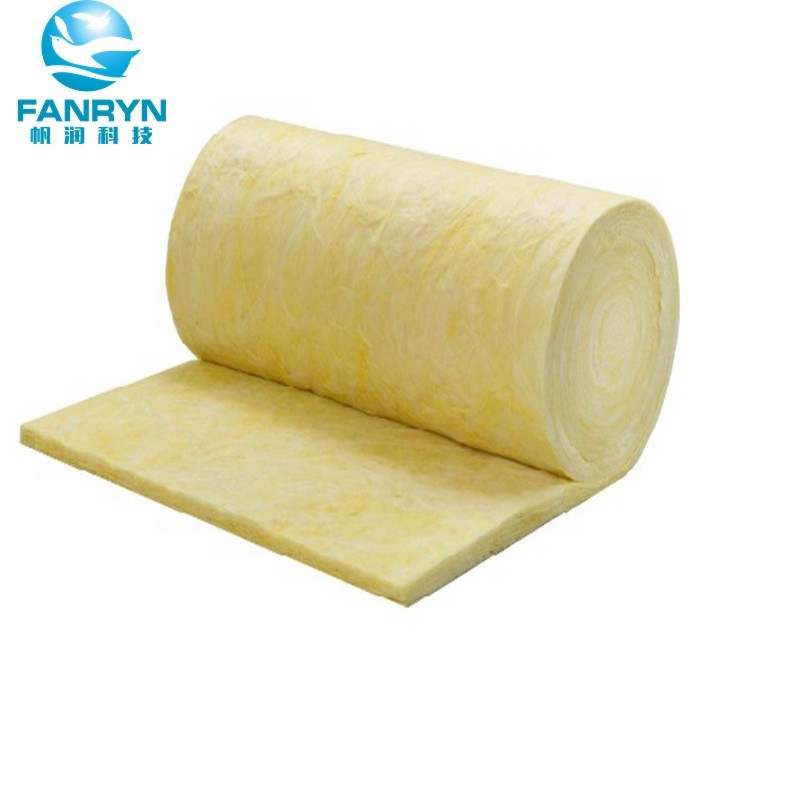

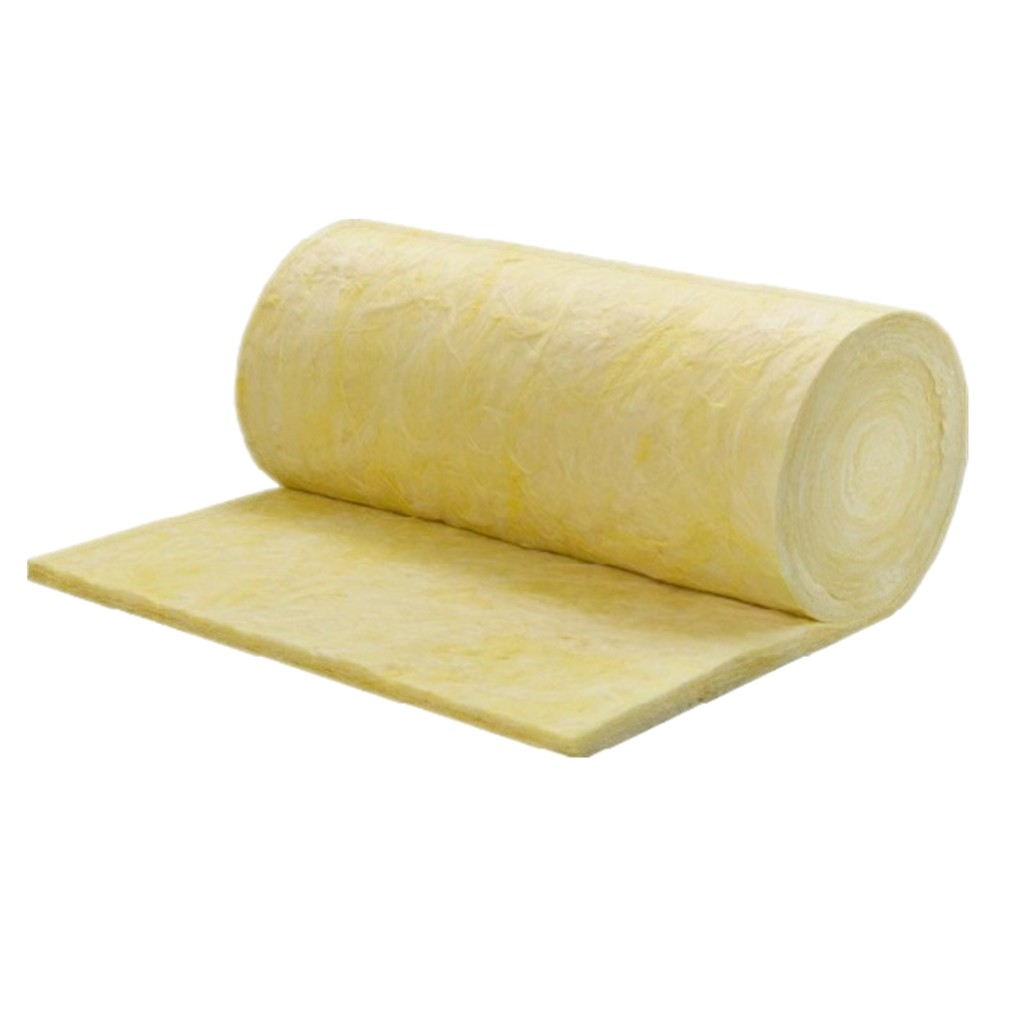

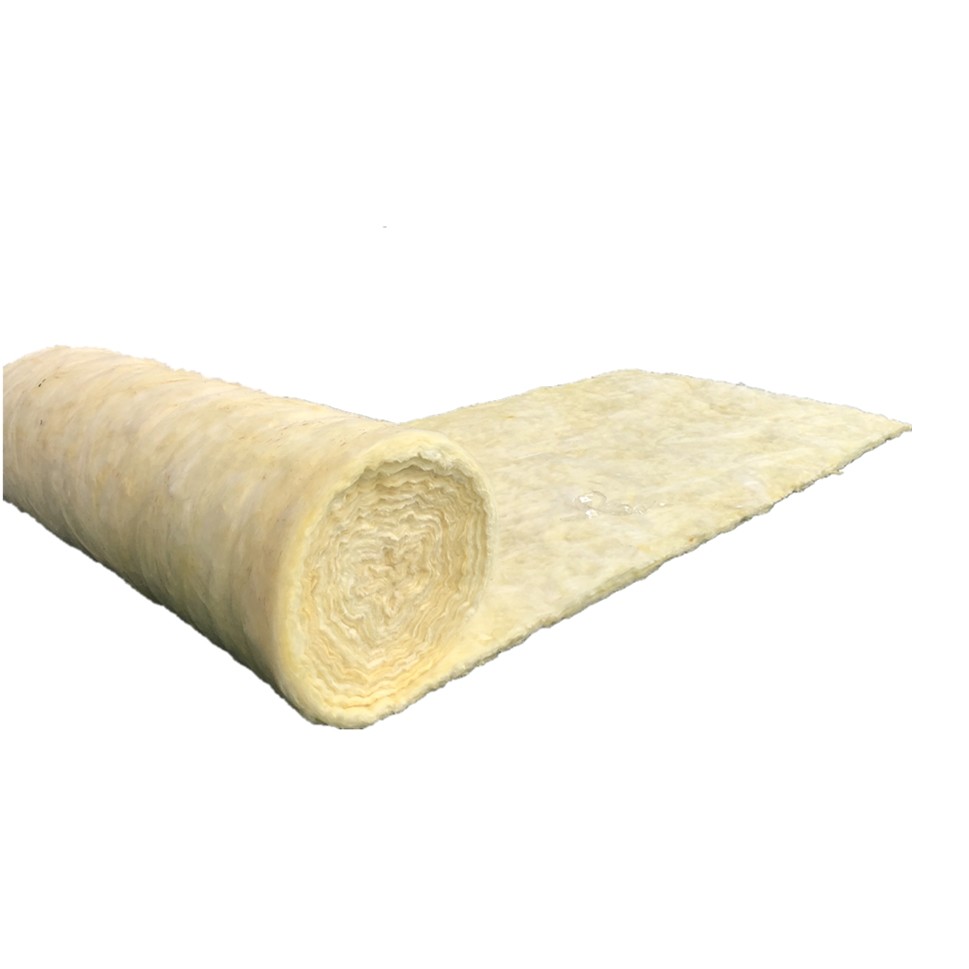

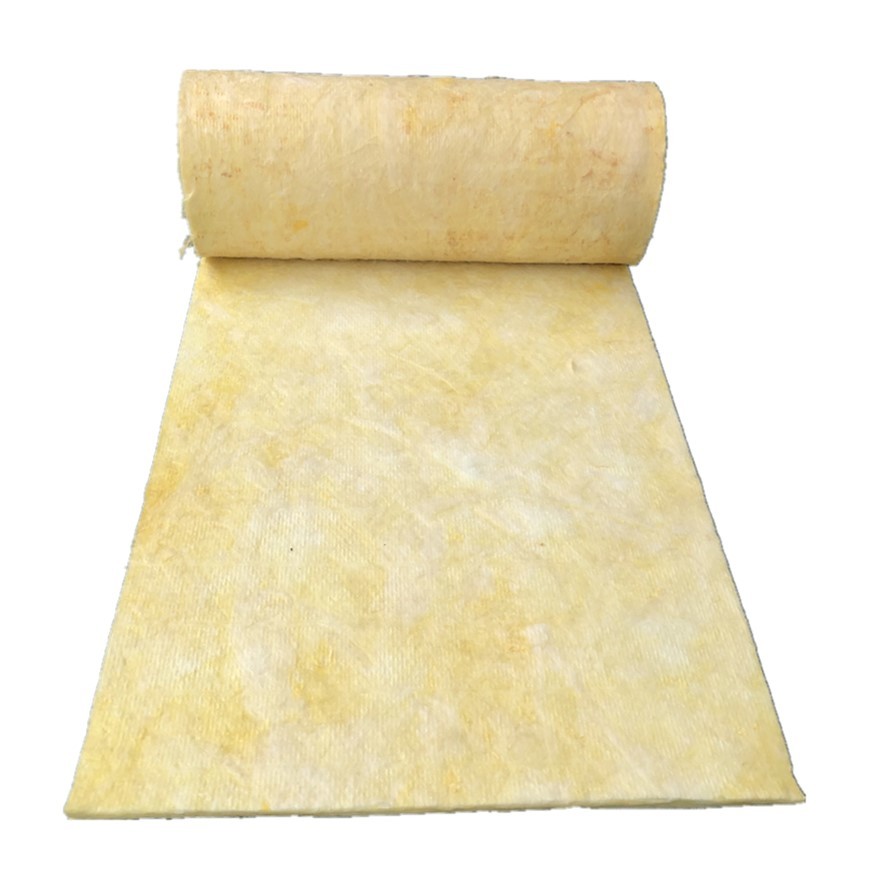

FANRYN Centrifugal Glass Wool Blanket Insulation is engineered for efficient large-area installation. In addition to exceptional thermal insulation performance, it delivers effective shock absorption and acoustic isolation—especially for mid-to-low frequency noise—significantly reducing sound transmission to create quieter, more comfortable environments.
An optional aluminum foil facing is available to enhance moisture resistance, corrosion protection, and thermal reflectivity, thereby improving overall durability and energy efficiency—ideal for applications where hygiene or high humidity conditions are a concern.
| Density (kg/m³) | Thickness (m) | Length (m) | Width (m) | Rolls/Packing |
|---|---|---|---|---|
| 10-48 | 0.025-0.2 | 5-30 | 0.6 | 2 rolls |
| 10-48 | 0.025-0.2 | 5-30 | 1.1 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.15 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.2 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.25 | 1 roll | 2 rolls overlapping |
| Item | Unit | Index | Standard |
|---|---|---|---|
| Density | kg/m³ | 10-48 | GB/T 5480.3 |
| Average fiber diameter | μm | 5-8 | GB/T 5480.4 |
| Water content | % | ≤ 1 | GB/T 16400-2003 |
| Grade of combustibility | Non-combustible Grade A | GB 8624-1997 | |
| Reshrinking temperature | ℃ | 250-400 | GB/T 11835-2007 |
| Thermal conductivity | w/m*k | 0.034-0.06 | GB/T 10294 |
| Hydrophobicity | % | ≥ 98 | GB/T 10299 |
| Moisture rate | % | ≤ 5 | GB/T 5480.7 |
Wall Insulation
-Serves as a thermal insulation layer for exterior or interior walls, reducing heat loss and enhancing energy efficiency.
Steel Structure Insulation
-Ideal for insulating steel roofs and walls, delivering thermal and acoustic benefits along with moisture and corrosion resistance.
Indoor Partition Walls
-Improves acoustic and thermal performance of interior walls, creating quieter, more comfortable spaces.
Train Compartments
-Provides lightweight thermal and acoustic insulation for railway vehicles, enhancing passenger comfort and energy efficiency.
Sound Absorption and Acoustical Isolation
-Suitable for studios, cinemas, and machinery rooms to effectively reduce noise transmission.
HVAC Duct Insulation
-Wraps around ventilation ducts to prevent heat loss or gain, control condensation, and minimize system noise.
