| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | fanryn |
| إصدار الشهادات: | CE |
| رقم الموديل: | أنبوب الصخور |
| الحد الأدنى لكمية: | 1 * 40HQ بمواصفات مختلطة |
| الأسعار: | 0.1-5$ per meter |
| تفاصيل التغليف: | كيس من البلاستيك |
| وقت التسليم: | 7-10 أيام عمل |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 7-10 أيام عمل |
| نطاق قطر الأنابيب: | 22 ملم إلى 610 ملم | طريقة التثبيت: | أقسام ملتفة أو مسبقة التشكيل |
|---|---|---|---|
| الموصلية الحرارية: | 0.035-0.045 واط/م·ك | طلب: | العزل الحراري للأنابيب في قطاعات التدفئة والتهوية وتكييف الهواء والصناعة والبتروكيماويات |
| مقاومة الحريق: | غير قابلة للاحتراق، الفئة A1 | التأثير البيئي: | صديقة للبيئة |
| العزل الصوتي: | امتصاص صوت ممتاز | نطاق درجة الحرارة: | -200 درجة مئوية إلى 650 درجة مئوية |
| امتصاص الماء: | <1% | المقاومة الكيميائية: | مقاومة لمعظم المواد الكيميائية |
| طول: | 1000 ملم | مادة: | الصوف المعدني |
| اسم المنتج: | أنابيب الصوف المعدني |

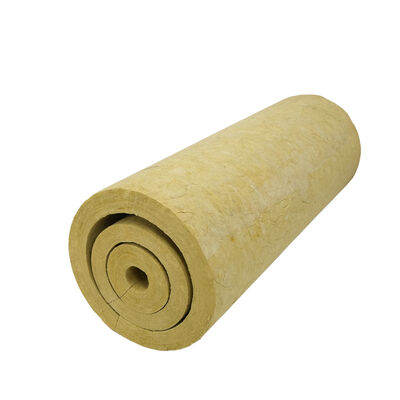

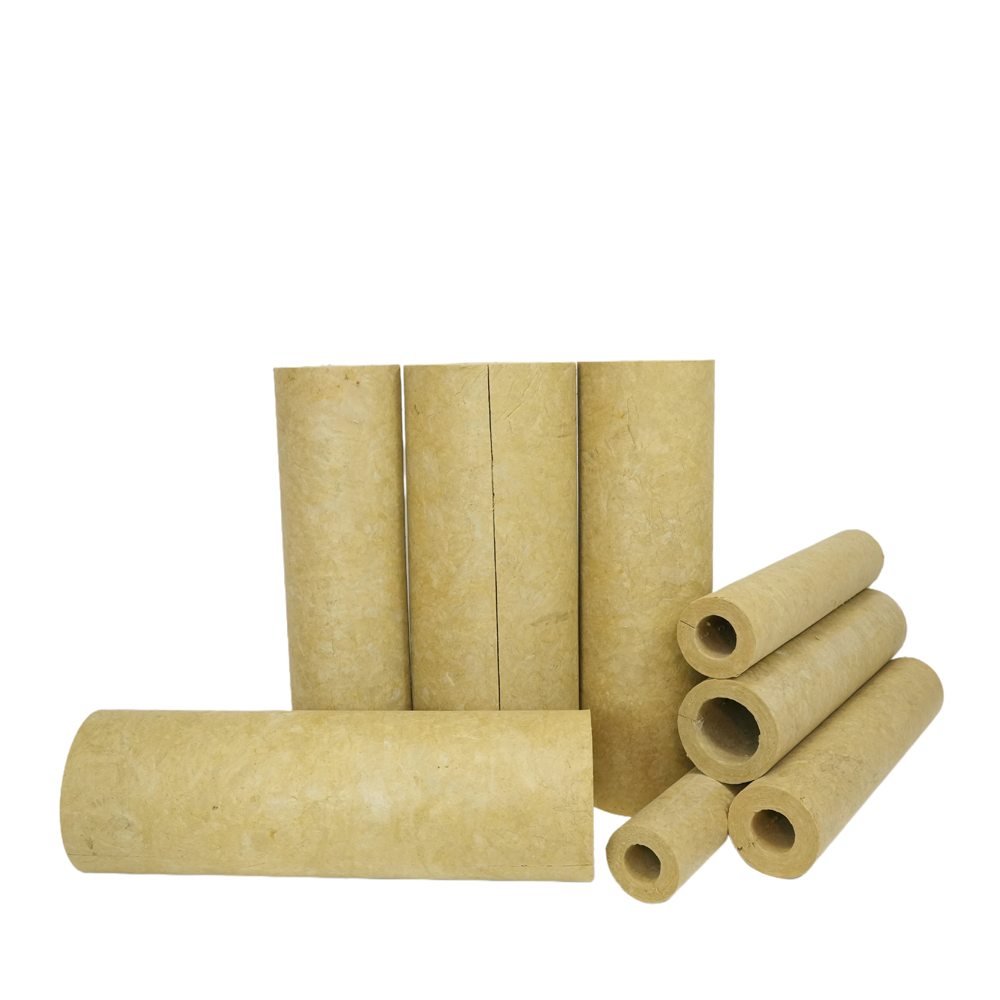

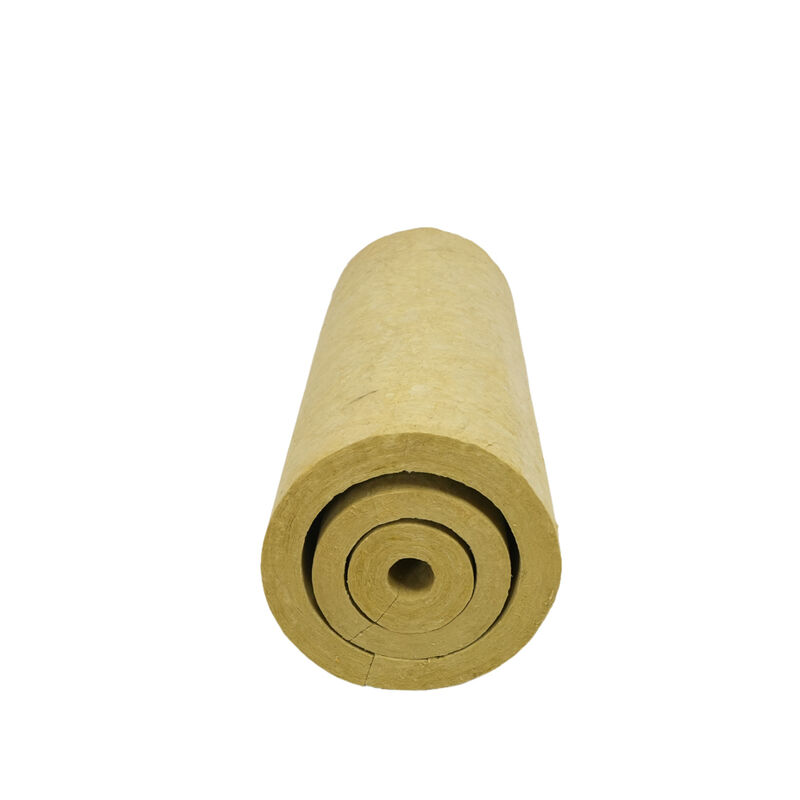

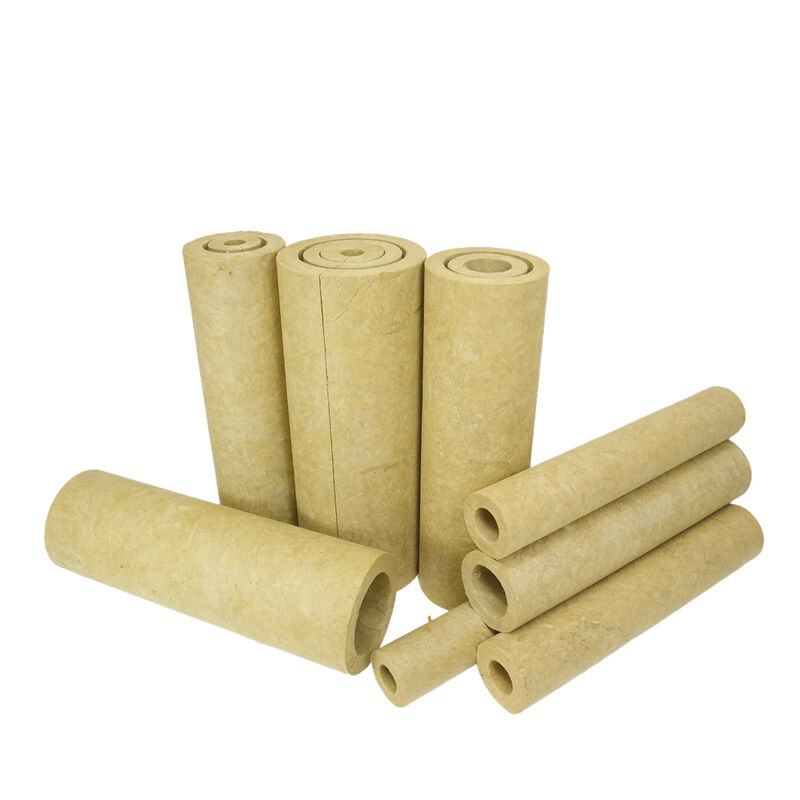

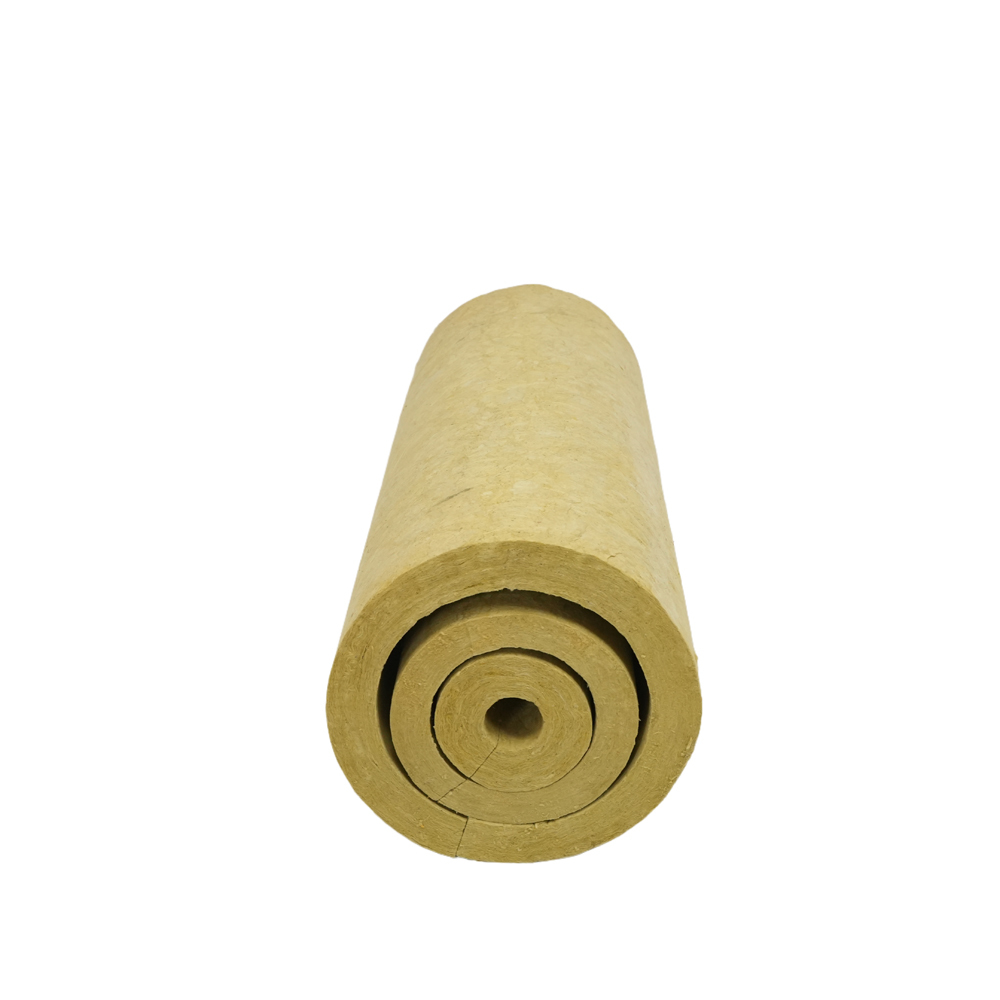

Rock Wool Pipe | Superior Thermal & Fire Insulation Solution
Product Introduction
FANRYN Rock Wool Pipe is a high-performance insulation material engineered from natural basalt and limestone. These rocks are melted at temperatures exceeding 1450°C, and the resulting molten lava is transformed into fine, resilient fibers through an advanced spinning process. Bound with a thermosetting resin, these inorganic fibers create a durable and efficient insulation product that is precisely cut for easy handling and installation.
Key Features & Benefits
Exceptional Thermal Insulation: Significantly reduces heat loss or gain, enhancing energy efficiency.
Superior Fire Safety: Rated as non-combustible (Class A1), providing reliable fire protection for piping systems.
Effective Acoustic Control: Helps dampen noise from fluid flow and mechanical vibrations.
Moisture Resistance: Repels water to maintain insulating performance over time.
Corrosion Prevention: Inert material that does not promote corrosion on pipes.
Eco-Friendly: Made from abundant natural minerals and contributes to long-term energy conservation.
Technical Specifications & Standards
|
Properties |
Specifications |
Standards |
|
Density Tolerance |
±15% |
GB/T 19686-2005 |
|
Fire Performance |
Non-Combustible |
GB/T 5464-1999 |
|
|
Reaction to fire Class A1 |
GB/T 8624-2006 |
|
Thermal Conductivity (W/mK, at70±5℃) |
≤0.044 |
GB/T 10295 |
|
Fiber Diameter |
7(+/-1)um |
GB/T 5480. 4 |
|
Shot Content (shot size＞0.25mm) |
≤12% |
|
|
Eccentricity of Pipe shell |
≤5mm |
|
Product size of the Rock Wool Pipe
|
DIA |
Thickness (mm) |
|||||||||||
|
inch |
mm |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
150 |
|
1/2’’ |
22 |
● |
● |
|
● |
|
|
|
|
|
|
|
|
3/4’’ |
27 |
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
1’’ |
34 |
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
1-1/4’’ |
43 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
1-1/2’’ |
48 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
2’’ |
60 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
2-1/2’’ |
76 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
3’’ |
89 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
3-1/2’’ |
108 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
4’’ |
114 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
5’’ |
140 |
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
6’’ |
169 |
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
8’’ |
219 |
|
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
10’’ |
273 |
|
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
12’’ |
325 |
|
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
14’’ |
356 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
15’’ |
381 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
16’’ |
406 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
18’’ |
456 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
19’’ |
483 |
|
|
|
|
|
● |
● |
● |
● |
● |
● |
|
20’’ |
508 |
|
|
|
|
|
● |
● |
● |
● |
● |
● |
|
22’’ |
558 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
|
24’’ |
610 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
Primary Applications
Ideal for thermal insulation and fireproofing in large-scale industrial projects, including:
Power Plants
Oil Depots & Refineries
Petrochemical Facilities
Packaging
Each pipe is securely wrapped in plastic bag (standard export packing) to ensure protection during transit and storage.
Quality Assurance & Service
Quality Control: Our experienced QC team inspects product quality at every stage of the manufacturing process.
Lead Time: Typically 15-20 working days for one 40HC container order after order confirmation.
Customization: We specialize in manufacturing products with special specifications to meet unique project requirements.
Warranty: Our products come with a one-year warranty. Any quality issues with the product or packaging will be addressed promptly with replacement or compensation.
