| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | FANRYN |
| إصدار الشهادات: | CE |
| الحد الأدنى لكمية: | 1 40 مقر |
| تفاصيل التغليف: | كيس بلاستيكي |
| وقت التسليم: | 15 يوم عمل |
| شروط الدفع: | تي/تي |
| اسم المنتج: | الصوف المعدني العازل الحراري | نفاذية البخار: | 0.3 ميكروغرام/(باسكال·م) |
|---|---|---|---|
| أبعاد: | 1200 مم × 600 مم × 50-100 مم | معامل امتصاص الصوت: | 0.85 |
| التطبيقات: | عزل المباني، المعدات الصناعية، أنظمة التدفئة والتهوية وتكييف الهواء | التأثير البيئي: | قابلة لإعادة التدوير وصديقة للبيئة |
| درجة الحرارة المقاومة: | -180 درجة مئوية إلى 650 درجة مئوية | مقاوم النار: | غير قابلة للاحتراق، الفئة A1 |
| طريقة التثبيت: | صلابة ميكانيكية أو ملصقة | قوة الضغط: | ≥10 كيلو باسكال |
| توصيل حراري: | 0.035 واط/م·ك | مادة: | الصوف المعدني |
| الماءالامتصاص: | <1% | كثافة: | 40-200 كجم/م3 |
| لون: | أصفر أو بني | ||
| إبراز: | high-temperature wire mesh insulation blanket,rock wool insulation for commercial construction,thermal insulation mineral wool blanket |
||

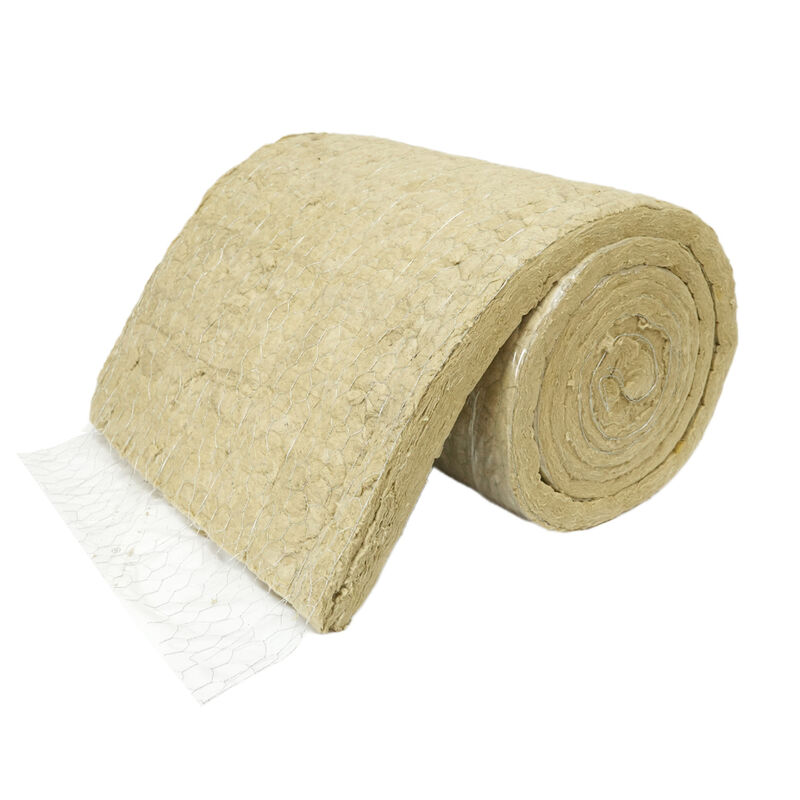

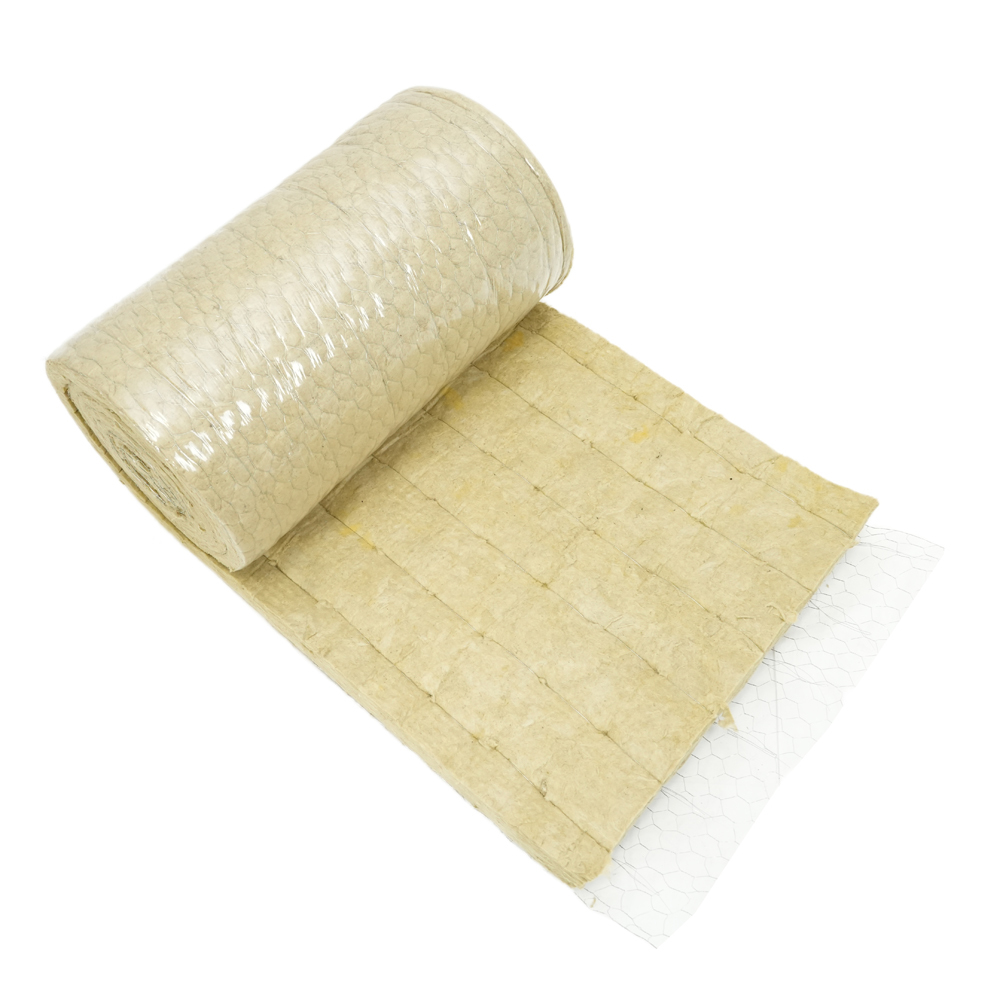

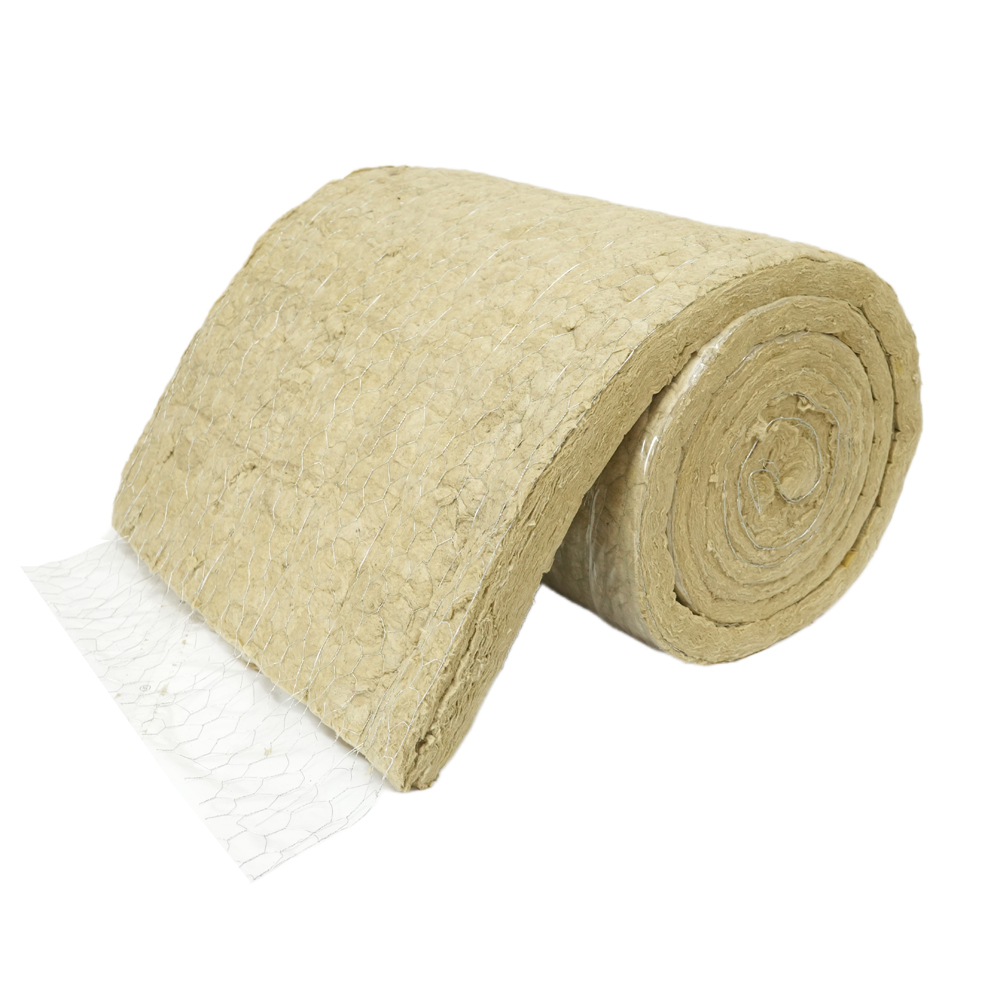

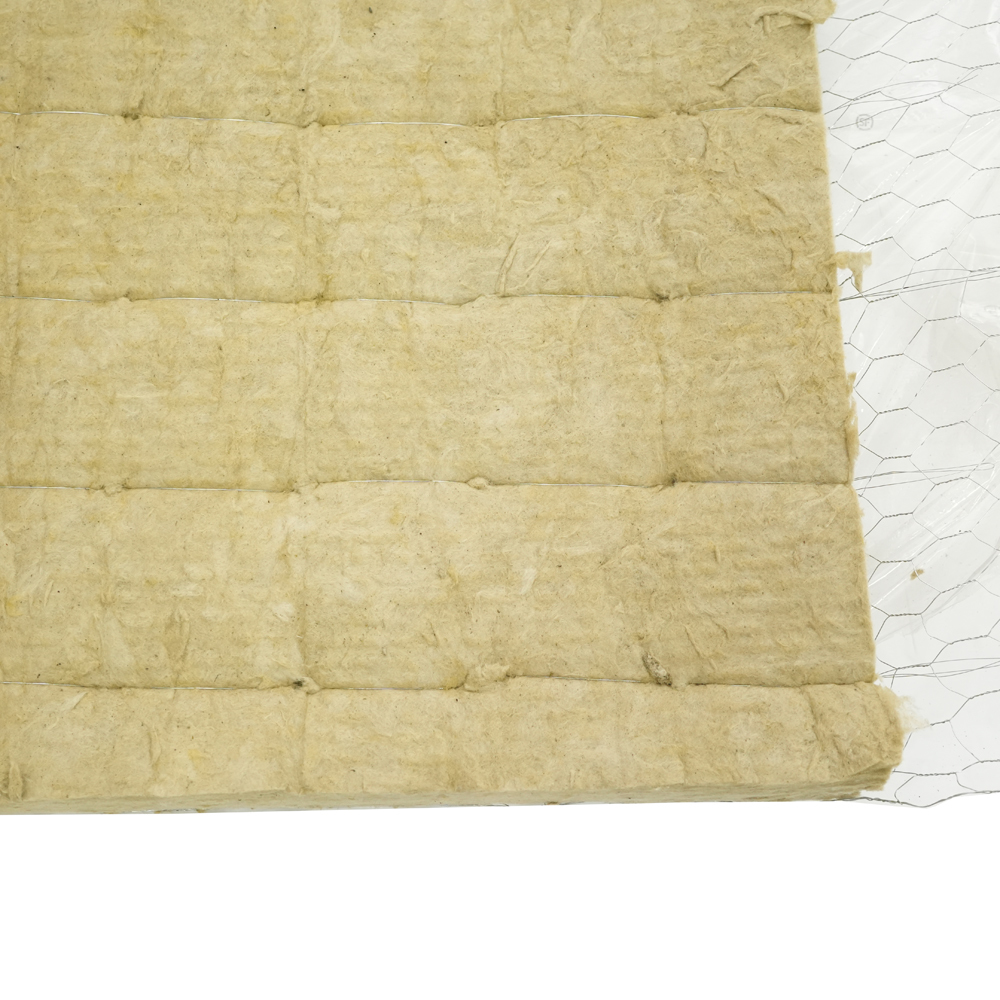

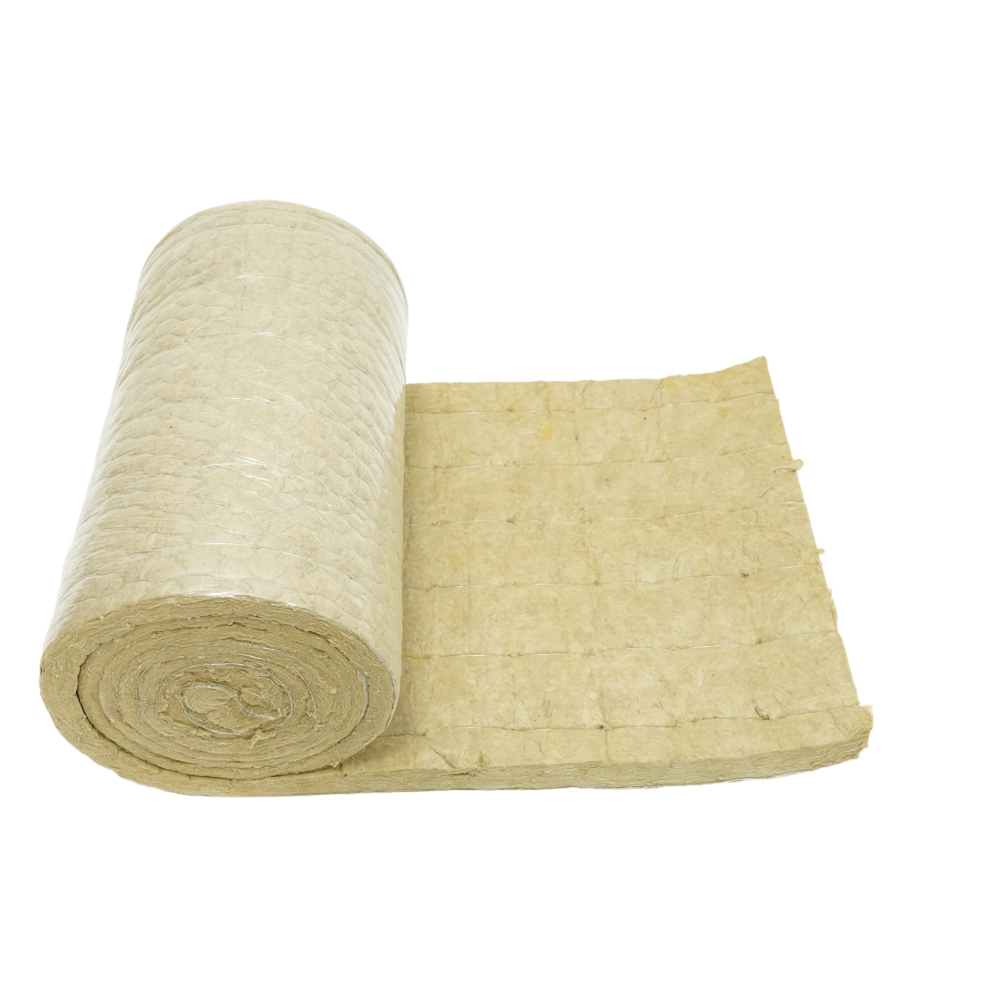

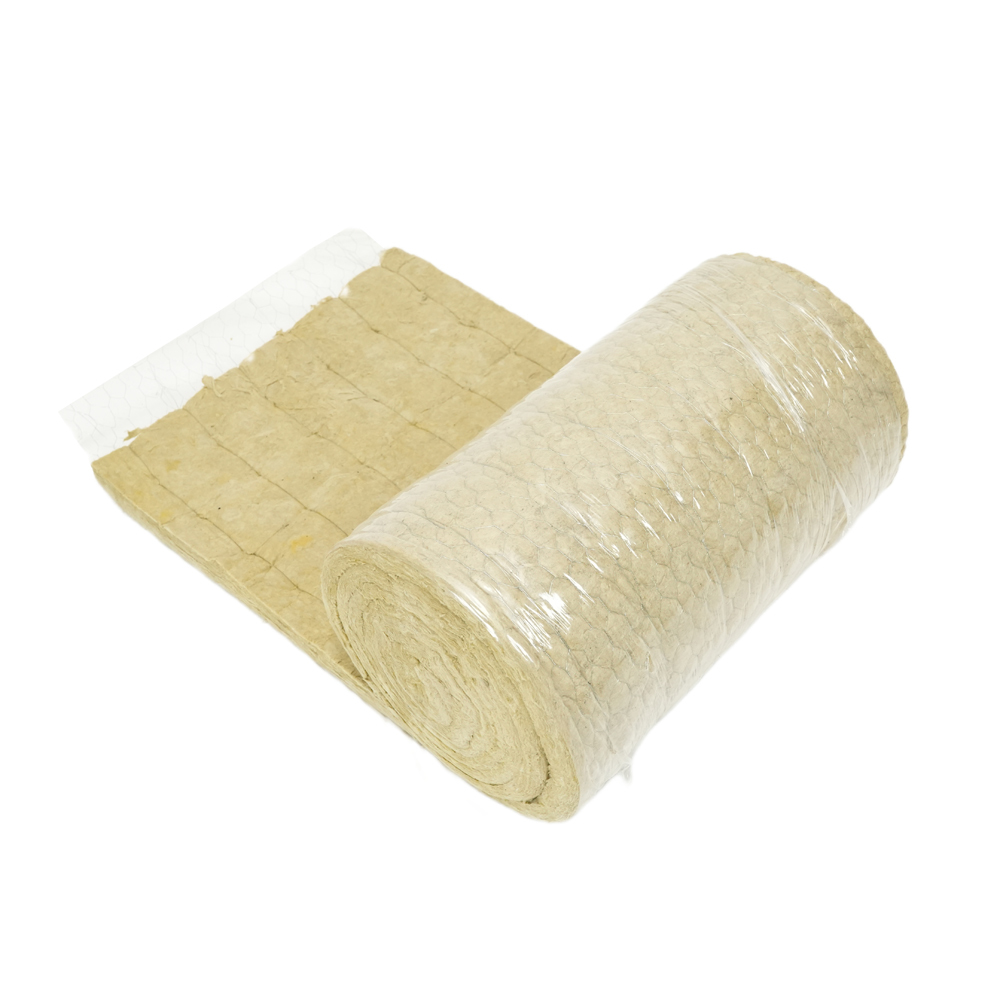

Product introduction of the Rock Wool Blanket
Specifically designed for commercial building applications, our wire mesh faced rock wool blanket combines fire safety with superior thermal and acoustic performance. This versatile insulation solution is perfect for external walls, roofing systems, floating floors, and large diameter pipe insulation in shopping malls, offices, and residential complexes. The galvanized wire mesh facing provides added durability during installation and long-term service, while the dense rock wool core (60-100 kg/m³) ensures excellent sound absorption and energy conservation. With a melting point exceeding 1000℃ and Class A1 fire rating, this blanket meets the strictest building safety codes. Easy to cut and shape on-site, it accommodates various architectural details. Standard rolls of 600mm x 5000mm are available in multiple thicknesses, packaged for export in protective plastic and woven bags. Custom sizes and mesh configurations are available upon request.
Product parameter of the Rock Wool Blanket
| Properties | Blanket | Standards |
|---|---|---|
| Density Tolerance | ±10% | GB/T 19686-2005 |
| Fire Performance | Non-Combustible | GB/T 5464-1999 |
| Reaction to fire Class A1 | GB/T 8624-2006 | |
| Thermal Conductivity (W/mK, at70±5℃) | ≤0.044 | GB/T 10295 |
| Fiber Diameter | 7(+/-1)um | GB/T 5480. 4 |
| Shot Content (shot size＞0.25mm) | ≤12% | |
| Moisture Content | ≤0.5% | |
| Organic Matter Content | ≤4% | |
| Melting Point | ＞1000℃ |
Product size of the Rock Wool Blanket
| Product | Blanket |
|---|---|
| Density (kg/m3) | 60-100 |
| Size: L x W (mm) | 600X5000 |
| Thickness (mm) | 30-150 |
Product feature of the Rock Wool Blanket
Product application of the Rock Wool Blanket
Insulation for external wall, roofing and floating floor
Insulation for big sized pipeline
ROCK WOOL blanket is widely used in public, commercial and residential buildings as well as industrial plants, for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation, acoustic control and condensation control.
Production packing of the Rock Wool Blanket
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag + woven bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on Rock Wool Blanket?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
