| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | FANRYN |
| إصدار الشهادات: | CE, ASTM E84, EN 13501 12018 |
| رقم الموديل: | أنبوب الزجاج |
| الحد الأدنى لكمية: | 1 * 40HQ لكل المواصفات |
| الأسعار: | 0.5-5$/m2 |
| تفاصيل التغليف: | كيس من البلاستيك أو الكرتون |
| وقت التسليم: | 15 يوما |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 1 * 40HQ 15 يومًا |
| توصيل حراري: | >=0.4 وات/م·ك | التأثير البيئي: | قابلة لإعادة التدوير وصديقة للبيئة |
|---|---|---|---|
| مقاوم النار: | غير قابلة للاحتراق، الفئة A1 | الماءالامتصاص: | <1% |
| اسم المنتج: | لوحة سقف من الألياف الزجاجية | طلب: | الفصول الدراسية والمكاتب ومركز التسوق، الخ. |
| مادة: | الصوف الزجاجي | المجلس النرويجي للاجئين: | 0.8-0.9 |
| إبراز: | glass wool pipe insulation,industrial cold-keeping pipe insulation,building materials heat insulation pipe,industrial cold-keeping pipe insulation,building materials heat insulation pipe |
||

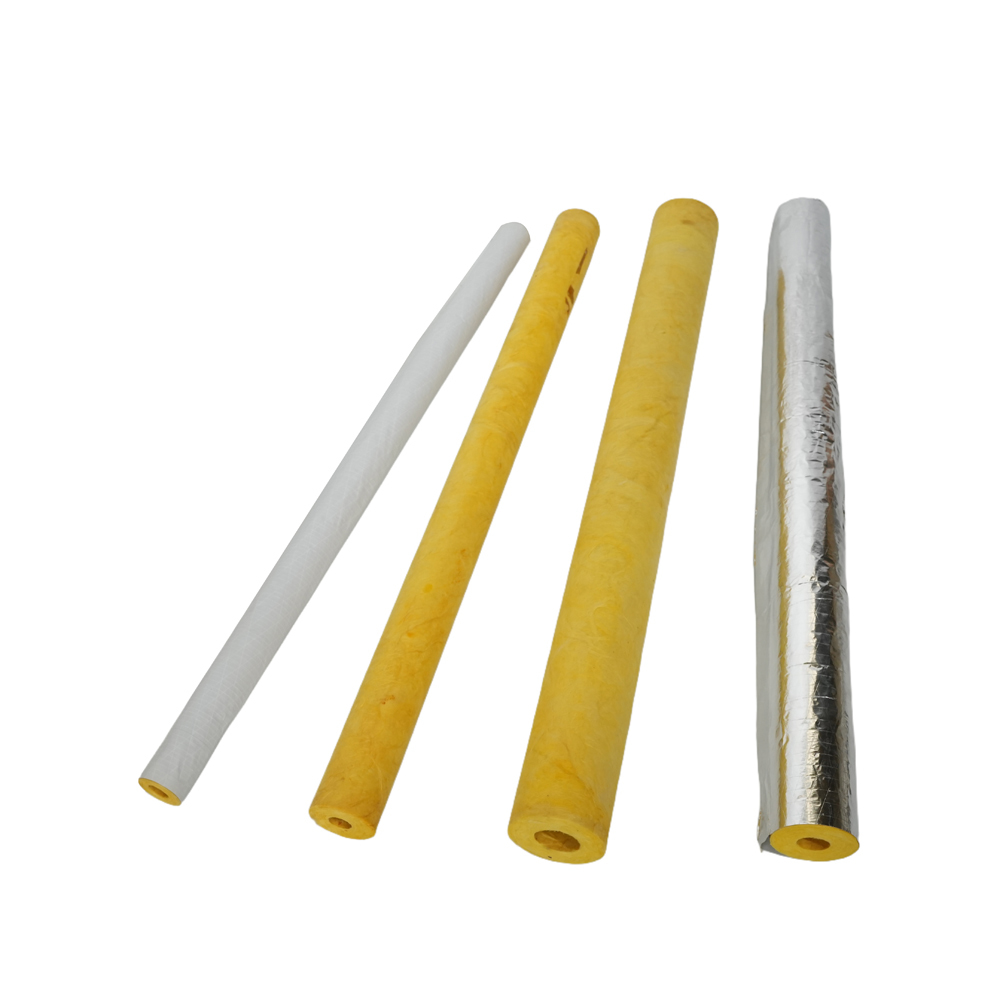

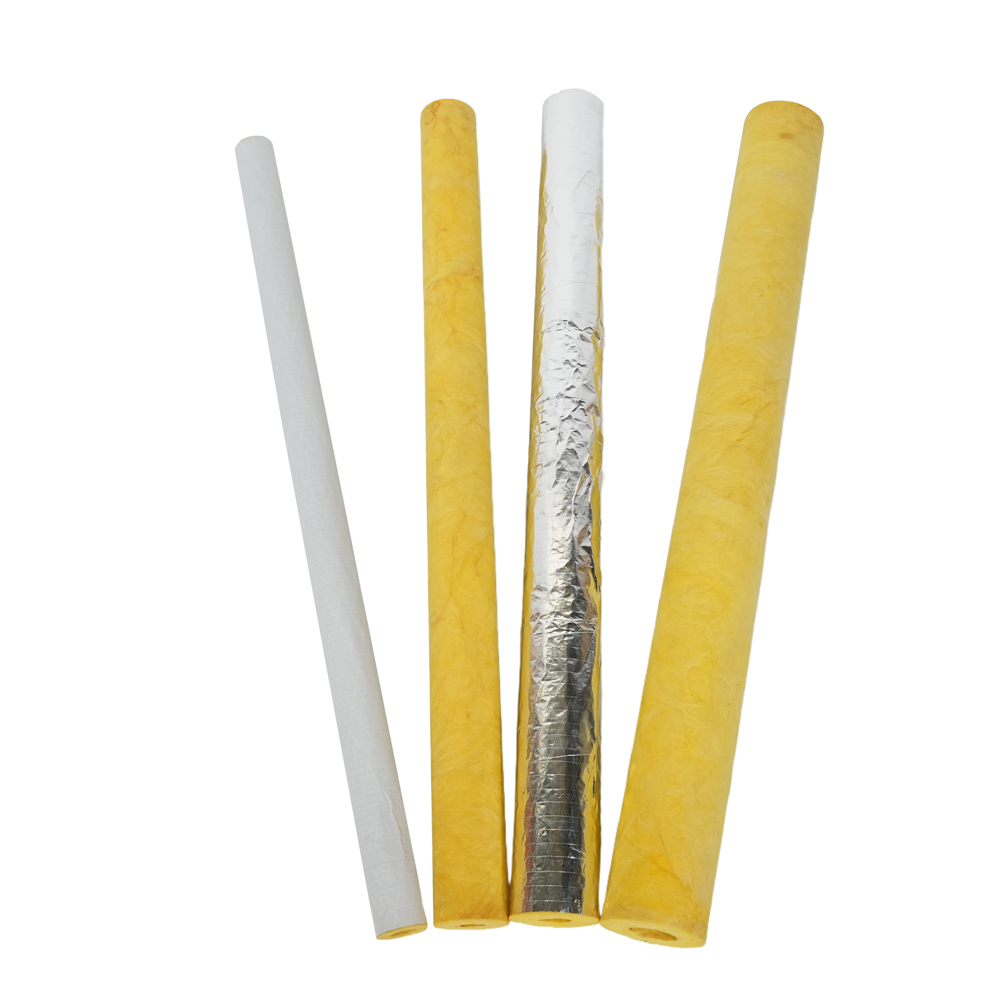

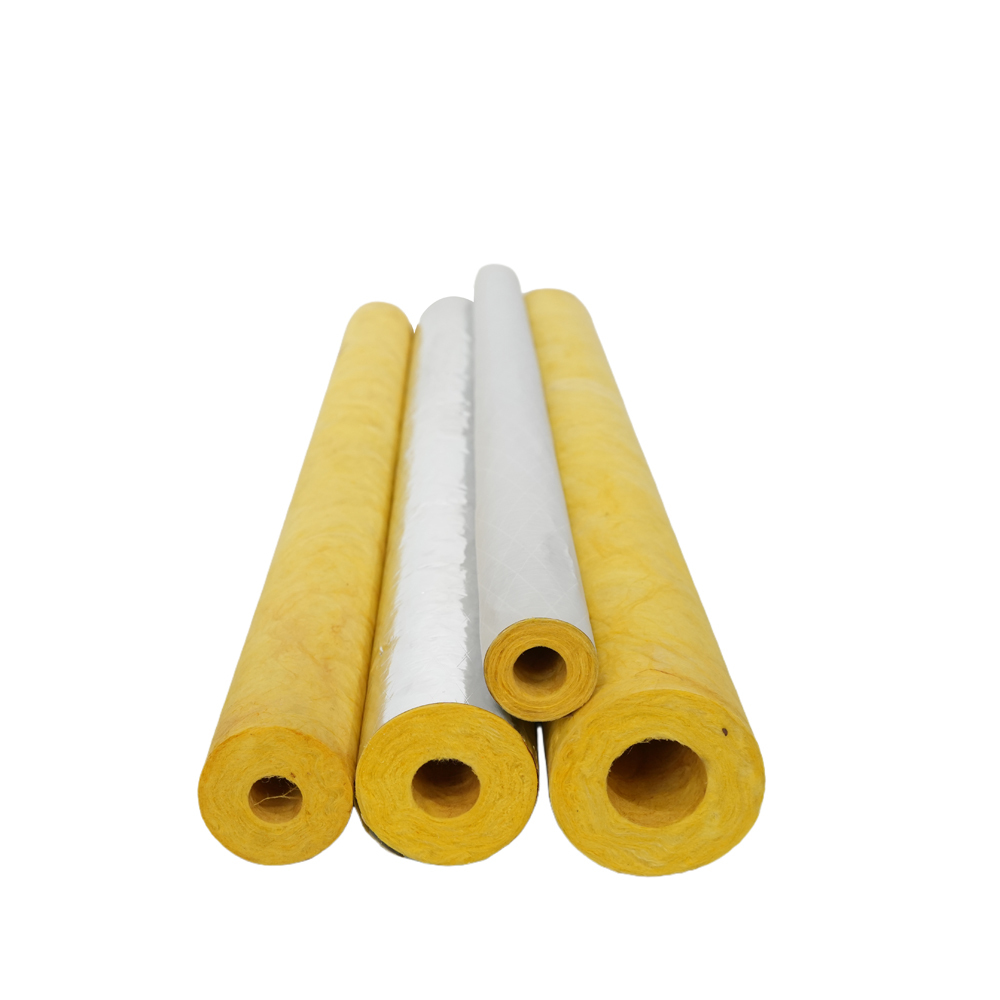

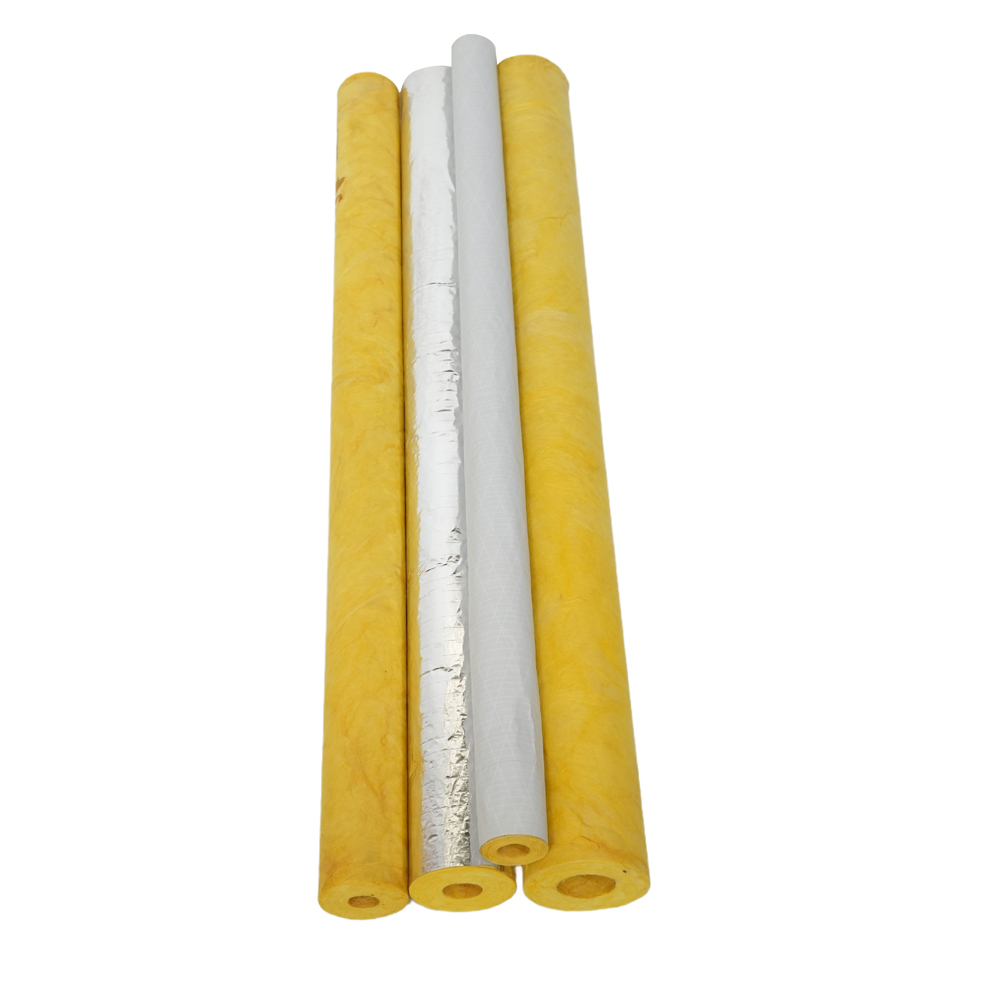

Products Description
Glass wool pipe sections are a cost-effective insulating material, known for being lightweight and easy to install. They provide excellent thermal and acoustic insulation across a wide temperature range, from -85℃ to 454℃. As a result, these pipe sections are widely used for insulating ventilation ducts, industrial and civil heating systems, as well as various heating and cooling pipelines.
Product feature of the glasswool pipe
Wide-Temp Performance
Excellent insulation from -85°C to 454°C for both heating and cooling lines.
Noise Reduction
Absorbs sound from airflow and vibration, reducing system noise.
Easy & Fast Installation
Lightweight pre-formed sections cut and fit quickly, saving time and labor.
Moisture Resistant
Hydrophobic treatment prevents condensation and maintains performance.
Safe & Durable
Non-corrosive, fire-resistant (Class A), and long-lasting.
Cost-Effective for Multiple Uses
Ideal for HVAC, industrial, and domestic hot/cold water pipes.
Product Specifications
|
Density(kg/m3) |
Thickness(mm) |
Length (mm) |
Diameter (mm) |
|
48-80 |
25-90 |
1000,1200 |
18-529 |
Technical Data
|
|
Recommend Thickness List(mm)
Equivalent Thickness of Surface Cooling Prevention
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product application
Pipe Insulation
Main Facing:
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Production packing of the glass wool pipe
Carton or plastic bag
Note: OEM is acceptable
