| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | FANRYN |
| إصدار الشهادات: | CE, ASTM E84, EN 13501 12018 |
| رقم الموديل: | بطانية صوف زجاجي حمراء |
| الحد الأدنى لكمية: | 1 * 40HQ لكل المواصفات |
| الأسعار: | 0.2-5$/m2 |
| تفاصيل التغليف: | كيس من البلاستيك فراغ + كيس من القماش |
| وقت التسليم: | 7-10 أيام |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 1 * 40HQ 7 أيام |
| توصيل حراري: | 0.031-0.042 واط/م·ك | كثافة: | 10-100 كجم/م3 |
|---|---|---|---|
| التأثير البيئي: | قابلة لإعادة التدوير وصديقة للبيئة | مقاوم النار: | غير قابلة للاحتراق، الفئة A1 |
| معامل امتصاص الصوت: | 1.03 طريقة صدى المنتج 24 كجم/م 3 2000 هرتز | الماءالامتصاص: | <1% |
| اسم المنتج: | صوف زجاجي عازل للحرارة | طلب: | العزل الحراري للمباني والمعدات الصناعية |
| سماكة: | 25-200 مم | مادة: | الصوف الزجاجي |
| لون: | الأصفر والبني والأحمر | درجة الحرارة المقاومة: | -270 درجة مئوية إلى 350 درجة مئوية |
| أبعاد: | يختلف (على سبيل المثال، ألواح مقاس 600 × 1200 مم) | ||
| إبراز: | red glass wool insulation blanket,sound absorption fiberglass insulation roll,glass wool blanket with warranty,sound absorption fiberglass insulation roll,glass wool blanket with warranty |
||

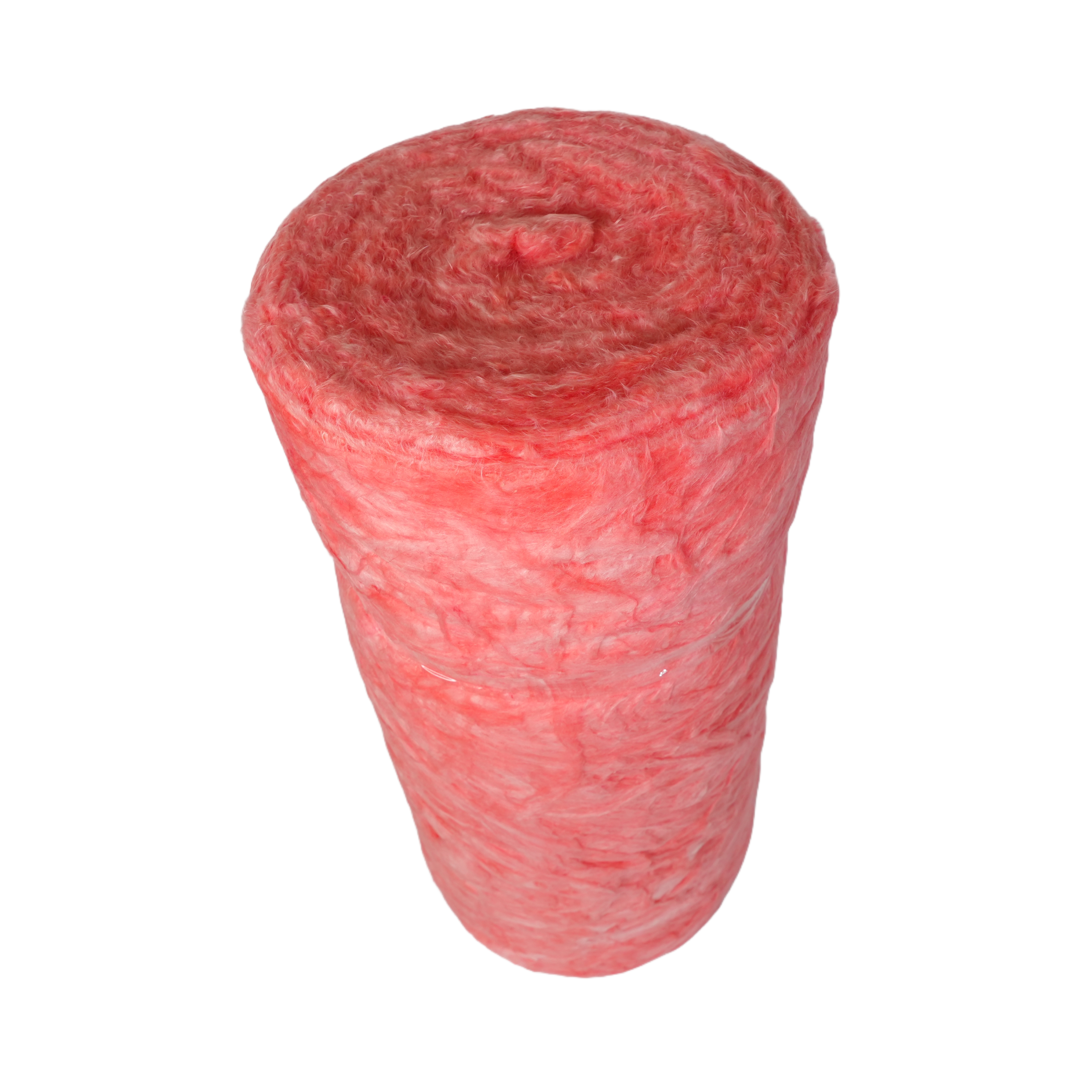

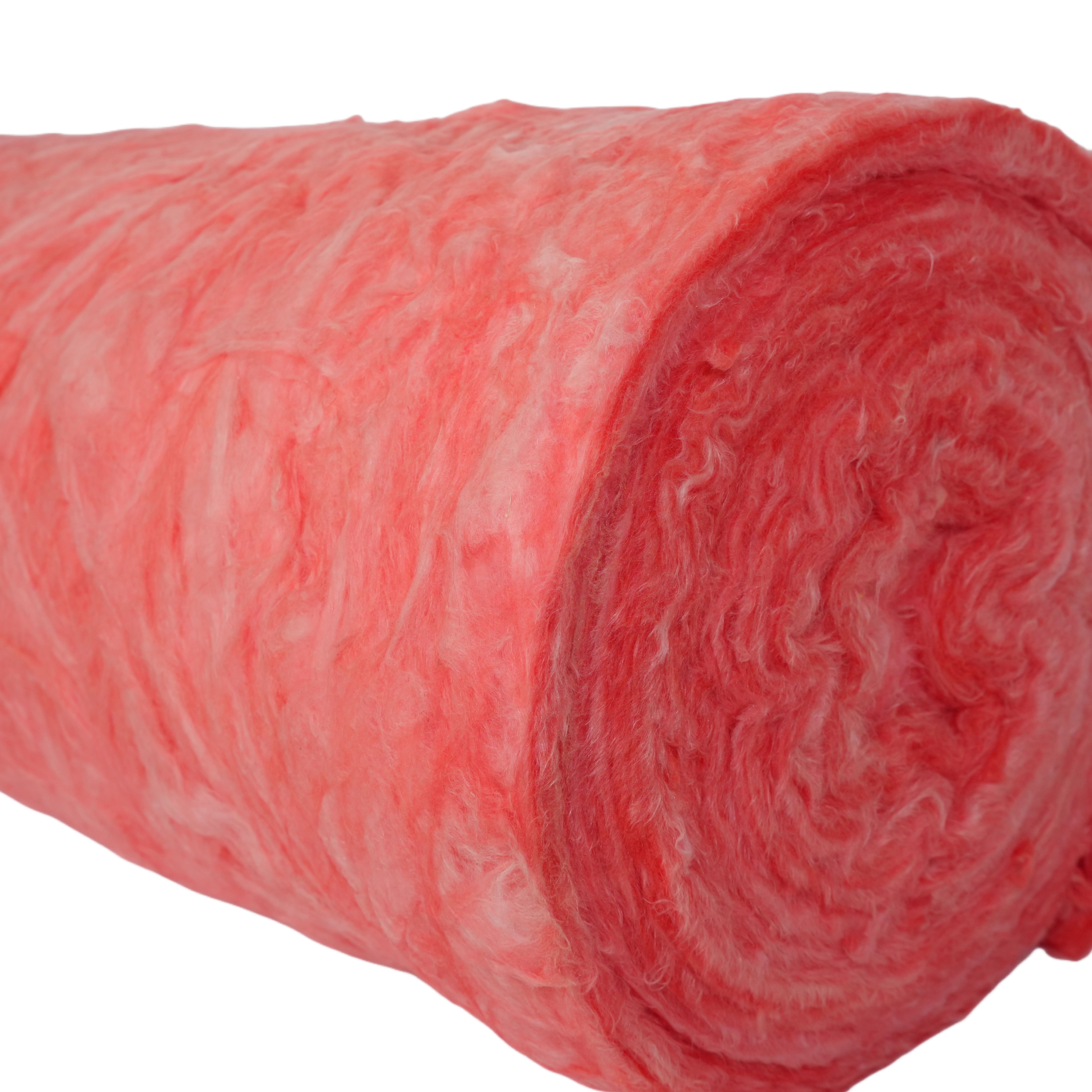

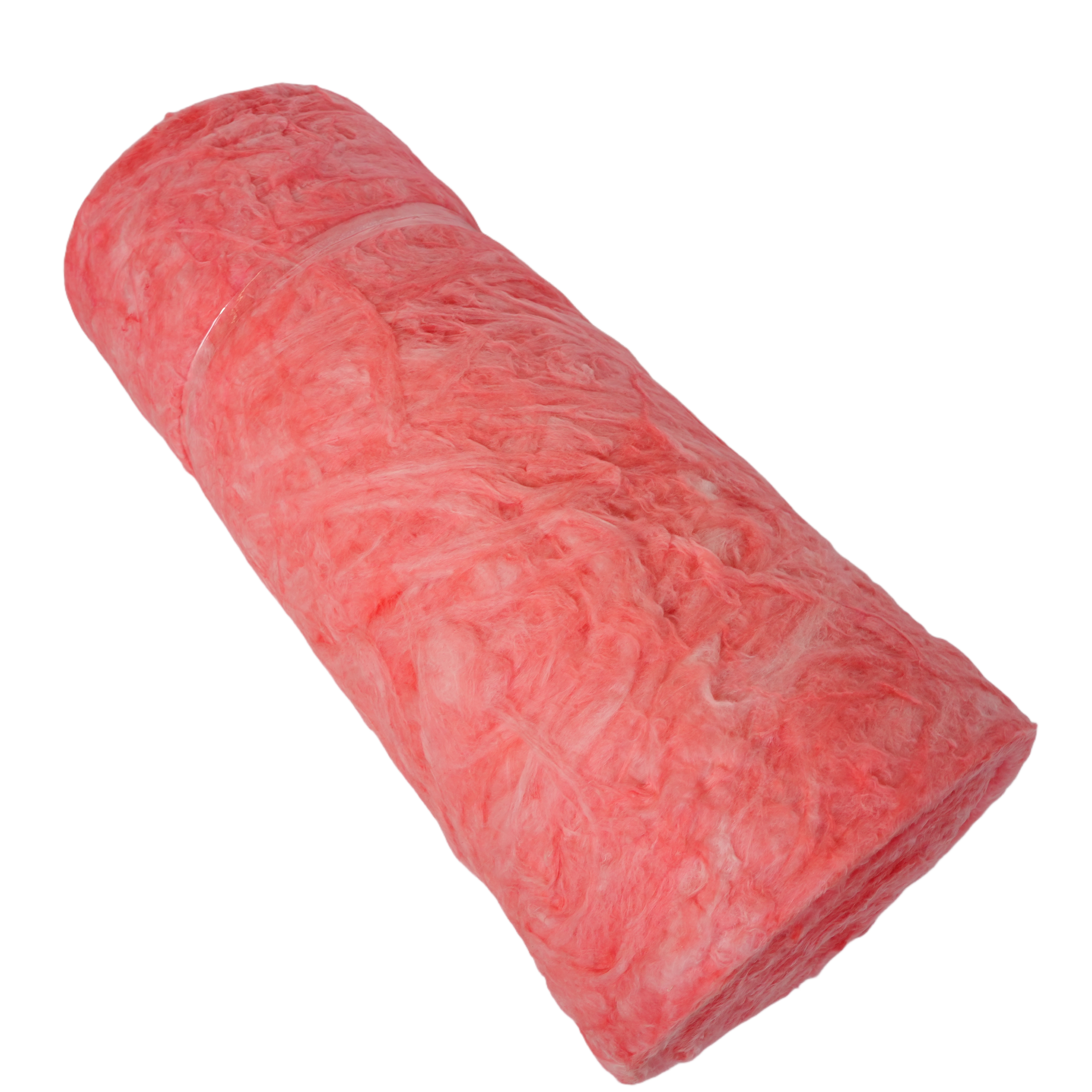

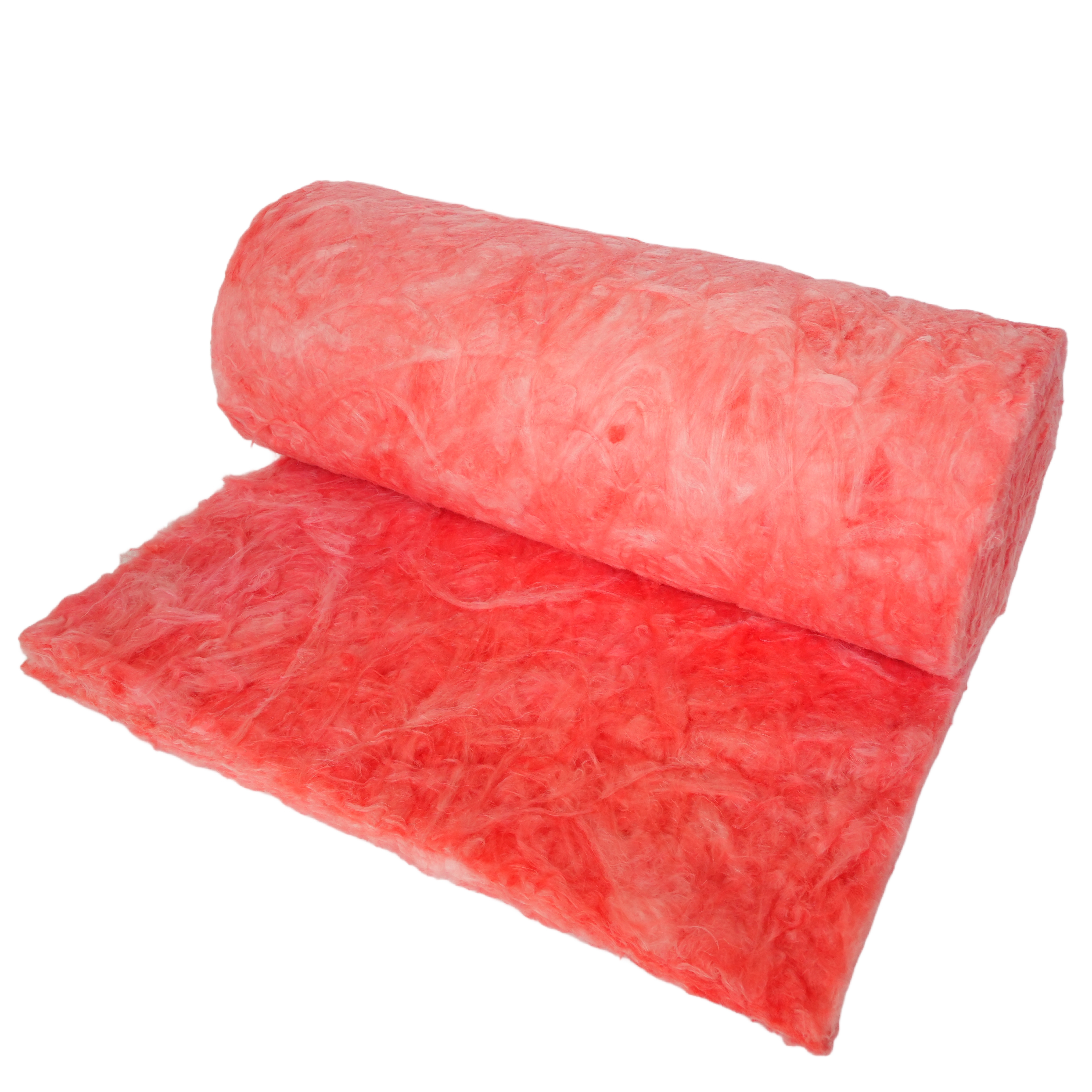

Products Description
As an upgraded version of glass wool, red glass wool retains all the inherent advantages of being non-combustible and providing superior thermal and acoustic insulation. Its most significant feature is that it emits no toxic fumes—particularly zero formaldehyde—during a fire. This makes it an eco-friendly and health-conscious insulation choice for modern buildings.
Product feature of the red glass wool blanket
1. Steady thickness recovery, our glass wool blanket can be rebounded to its original thickness within 24 hours after opening the vacuum packing
2. Steady thickness and color uniformity;
3. Good dimensional stability,
4. Soft and long glass fiber, it can maximally lessen flying catkin in the construction
5. Zero formaldehyde, eco-friendly
Product Specifications
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
10-100 |
GB/T 5480.3-1985 |
|
Average fiber dia. |
µm |
5.5 |
GB/T 5480.4-1985 |
|
Water content |
% |
≤1 |
GB/T 3007-1982 |
|
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
|
Reshrinking temp |
℃ |
≥250 |
GB/T 11835-1998 |
|
Thermal conductibility |
w/m.k |
0.038-0.06 |
GB/T 10294-1988 |
|
Hydrophobicity |
% |
≥98.2 |
GB/T 10299-1988 |
|
Moisture rate |
% |
≤5 |
GB/T 16401-1986 |
|
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m32000HZ |
GBJ 47-83 |
|
Slag inclusion content |
% |
≤0.3 |
|
Product size of the glass wool blanket
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Rolls/packing |
|
|
10-48 |
0.025-0.2 |
5-30 |
0.6 |
2 rolls |
|
|
10-48 |
0.025-0.2 |
5-30 |
1.1 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.15 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.2 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.25 |
1 roll |
2 rolls overlapping |
Product application of the glass wool blanket
1. Heat preservation of wall
2. Heat preservation of steel structure
3. Indoor partition wall
4. Train compartment
5. Sound absorption and acoustical isolation
Production Facing For glass wool blanket
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Production packing of the glass wool blanket
1. Vacuum plastic bag +woven bag
2. Vacuum plastic bag +woven bag +PE bag
3. Vacuum plastic bag+ PE shrinking bag
4. PE shrinking bag
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 10-15 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
