| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | FANRYN |
| الحد الأدنى لكمية: | 140 HC |
| تفاصيل التغليف: | كيس بلاستيكي |
| وقت التسليم: | 10 أيام عمل |
| شروط الدفع: | تي/تي |
| قوة الضغط: | ≥20 كيلو باسكال | درجة الحرارة المقاومة: | -269 درجة مئوية إلى 700 درجة مئوية |
|---|---|---|---|
| أبعاد: | عادة لوحات 600 مم × 1200 مم | مقاوم النار: | غير قابلة للاحتراق، الفئة A1 |
| طريقة التثبيت: | صلابة ميكانيكية أو ملصقة | ProductName: | الصوف المعدني العازل الحراري |
| معامل امتصاص الصوت: | 0.85 | نفاذية البخار: | 5-10 ميكروغرام/(باسكال·متر) |
| التأثير البيئي: | قابلة لإعادة التدوير وصديقة للبيئة | مادة: | الصوف المعدني |
| توصيل حراري: | 0.035 واط/م·ك | سماكة: | 25 ملم إلى 150 ملم |
| التطبيقات: | عزل المباني، وأنظمة التدفئة والتهوية وتكييف الهواء، والمعدات الصناعية | الماءالامتصاص: | <1 ٪ |
| كثافة: | 40-200 كجم/م3 | ||
| إبراز: | high-temp pipe lagging for steam lines,industrial pipe insulation mineral wool,hot water line thermal insulation,industrial pipe insulation mineral wool,hot water line thermal insulation |
||

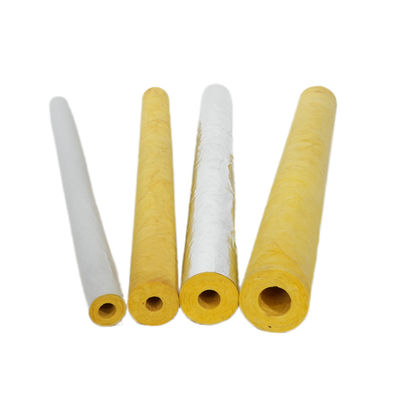

Designed to withstand demanding industrial environments, our Glass Wool Pipe Sections are the perfect insulation for high-temperature steam and hot water systems. They maintain process temperatures efficiently, protecting personnel from burns and significantly reducing heat energy loss. This ensures operational safety, lowers fuel costs, and improves overall system efficiency in plants, factories, and district heating networks. The material remains stable and effective even under high-pressure conditions.
Recommend Thickness List(mm)
Pipeline System Type | The Thickness of glasswood pipe shell applied in different pipeline(mm) | ||||||
|---|---|---|---|---|---|---|---|
Liquid Temperature Range℃ | Diameter of Branches Under 50mm | Under 25mm | 32-50 | 64-100 | 125-150 | Above 200mm | |
Air System Steaming and Water System High Temperature/ | 152-238 | 40 | 64 | 64 | 75 | 89 | 89 |
Medium Temperature/ | 122-151 | 40 | 50 | 64 | 64 | 75 | 75 |
low Temperature/ | 94-121 | 25 | 40 | 40 | 50 | 50 | 50 |
low Temperature System | 49-93 | 13 | 25 | 25 | 40 | 40 | 40 |
Steaming Condensator of Watering System | Any Temperature | 25 | 25 | 40 | 50 | 50 | 50 |
Equivalent Thickness of Surface Cooling Prevention
Environment | Relative Humidity | System Working Temperature | ||
|---|---|---|---|---|
2℃ | 7℃ | 13℃ | ||
38℃ | 50%-60% | 25 | 25 | 25 |
70% | 40 | 30 | 30 | |
80% | 75 | 60 | 50 | |
85% | 100 | 90 | 75 | |
32℃ | 50%-60% | 25 | 25 | 25 |
70% | 25 | 25 | 25 | |
80% | 50 | 50 | 40 | |
85% | 80 | 75 | 60 | |
27℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 65 | 50 | |
21℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 50 | 40 | |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Density(kg/m3) | Thickness(mm) | Length (mm) | Diameter (mm) |
|---|---|---|---|
48-80 | 25-90 | 1000,1200 | 18-529 |
Extreme Heat Resistance: Reliably operates with fluid temperatures from 152°C to 238°C.
Energy Saver: Excellent thermal properties contain heat within the pipeline, cutting down on energy waste.
Personnel Protection: Creates a safe-to-touch surface, minimizing the risk of accidental burns.
Durable & Long-Lasting: Maintains insulating performance and structural integrity over time.

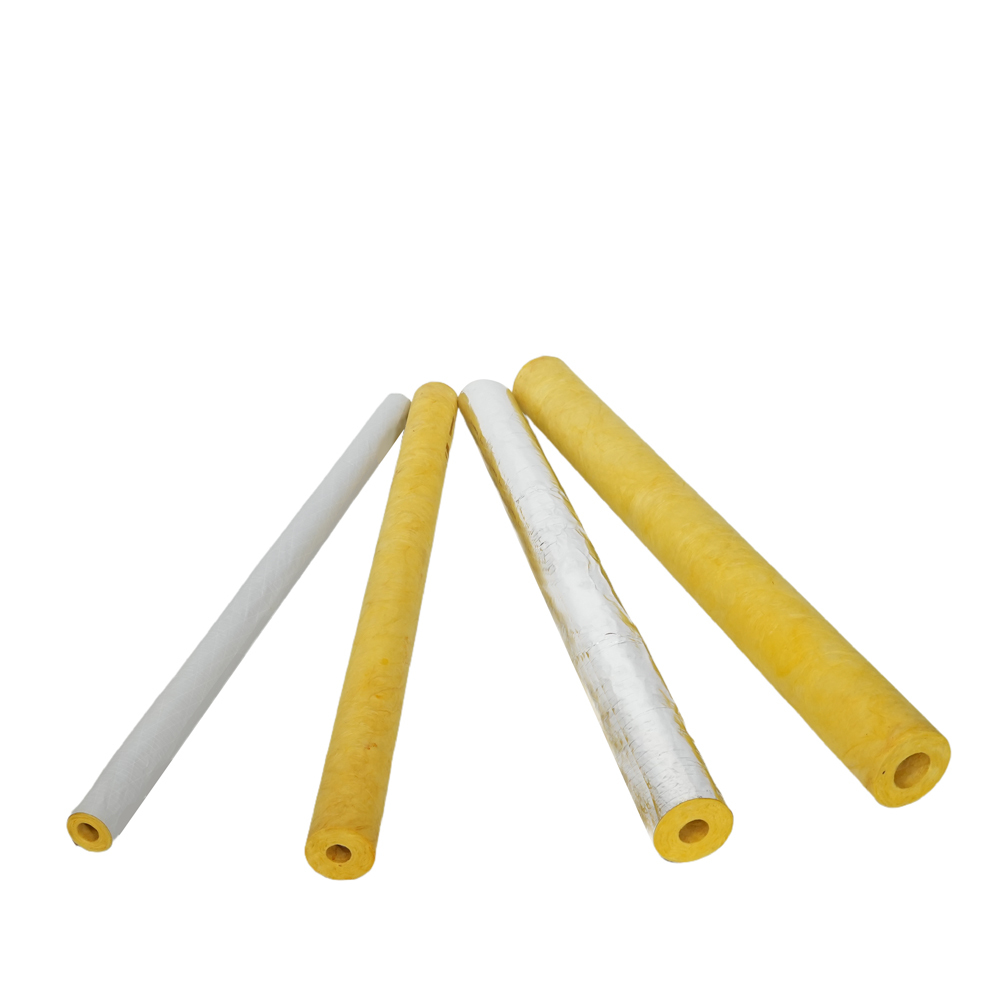

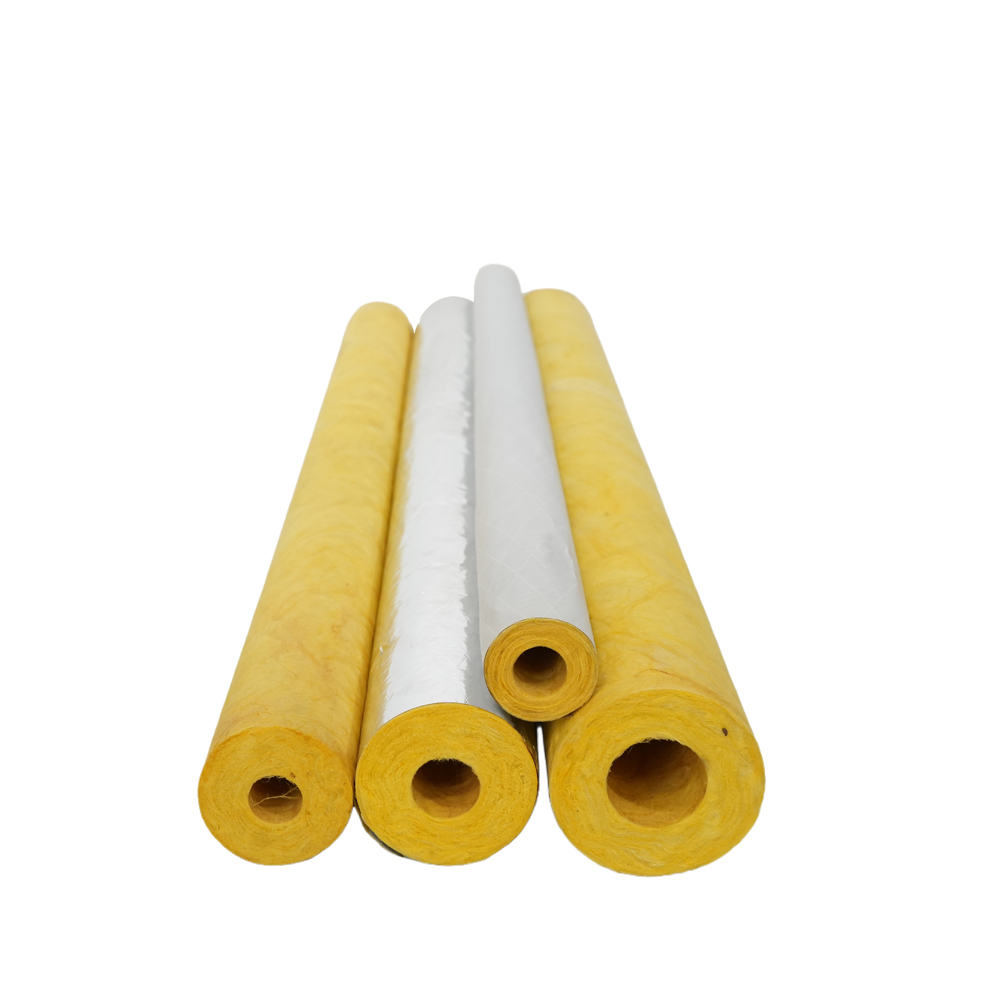

Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
