| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | FANRYN |
| تفاصيل التغليف: | كيس بلاستيكي |
| وقت التسليم: | 10 أيام WPRK |
| شروط الدفع: | ر/ر |
| وزن: | 80gsm | قوة الشد: | ≥ 60n/25mm |
|---|---|---|---|
| قوة قشر: | ≥6N/25 مم | سماكة: | 0.02mm |
| مقاومة الأشعة فوق البنفسجية: | نعم | مقاومة درجة الحرارة: | -30 ℃ إلى 120 ℃ |
| عرض: | 1.2m | طلب: | العزل ، HVAC ، التغليف |
| مادة: | رقائق الألومنيوم | مثبطات اللهب: | الفئة أ |
| انتقال بخار الماء: | 0.02g/m² · 24h | الانعكاس: | 97 ٪ |
| طول: | 60 م | المقاومة الكيميائية: | ممتاز |
| إبراز: | aluminum glass cloth foil facing,HVAC moisture barrier foil,kraft backing aluminum foil facing,HVAC moisture barrier foil,kraft backing aluminum foil facing |
||

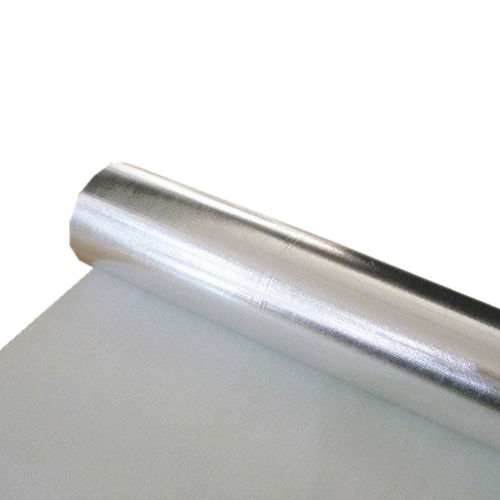

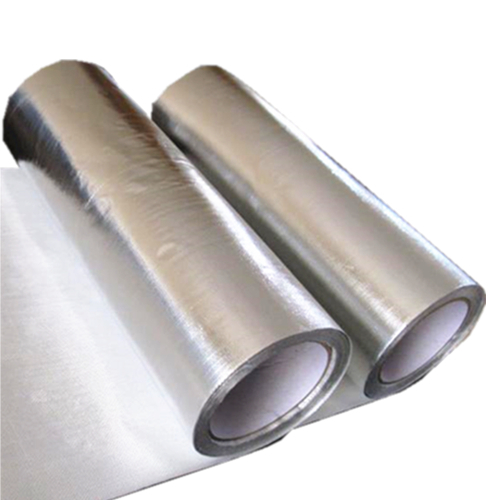

Product Introduction Of The ALUMINUM-GLASS CLOTH FOIL FACING
This unique composite material combines the durability of aluminum and fiberglass with the added protection of a kraft paper layer. The kraft backing provides an extra barrier against moisture and abrasion, making it an excellent choice for protecting sensitive equipment during shipping and storage. In HVAC applications, it can be used as a robust wrapping for insulated ducts that require additional puncture resistance. The aluminum surface reflects heat, while the entire assembly provides a tough, multi-layered defense against the elements.
Product Details Of The ALUMINUM-GLASS CLOTH FOIL FACING
Product Parameter Of The ALUMINUM-GLASS CLOTH FOIL FACING
|
Product |
Construction |
|
FG-701 |
Foil: 7 micron / Polyethylene / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
|
FG-R701 |
Foil: 7 micron / Flame retardant adhesive / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
|
FG-R1801 |
Foil: 18 micron / Flame retardant adhesive / 95 gsm fiberglass cloth ( 8x8 threads/cm) |
Fiberglass cloth standard weight is 95gsm ~110 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m
Inner core: 76mm
TYPICAL PHYSICAL PROPERTIES
|
Product |
Basic weight (g/m²) |
Tensile MD (n/25mm) |
Tensile XD (n/25mm) |
Bursting Strength(n) |
WVTR (ng/N.s) |
Reflectivity of Foil Surface |
Temperature Resistance (℃) |
Fire Rating |
|
FG-701 |
160 |
310 |
190 |
125 |
5.75 |
95% |
-29~ +66 |
----- |
|
FG-R701 |
130 |
260 |
180 |
125 |
5.75 |
95% |
-29~ +66 |
Class 1 |
|
FG-R1801 |
170 |
300 |
160 |
125 |
5.75 |
95% |
-29~ +66 |
Class 1 |
Product Feature And Application Of The ALUMINUM-GLASS CLOTH FOIL FACING
Heavy-Duty Protection: The 18-micron foil offers superior resistance to heat and physical damage compared to standard foils.
Certified Fire Safety: Class 1 Fire Rating ensures the material contributes to a safer working environment.
Moisture & Vapor Proof: Creates an impermeable shield that protects valuable machinery from corrosive moisture and vapor.
High-Temperature Stability: Maintains integrity and performance in temperatures up to 66°C.
Tear-Resistant Backing: The fiberglass cloth provides a strong, scuff-resistant surface that is easy to work with.
APPLICATION:
Aluminum fiberglass foil suit for HVAC duct wrap, also used for on-line lamination with insulation materials of glass wool, rock wool and mineral wool. The typical benefit is high tensile strength, excellent tear resistance.
Product Shipping Of The ALUMINUM-GLASS CLOTH FOIL FACING
